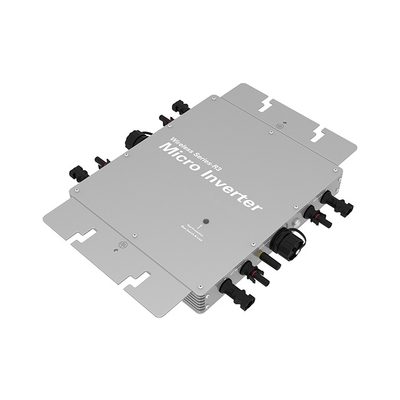

1200W 1400W 1600W 2000W 2400W 2800W Micro Grid Connected MPPT Inverter For Solar Photovoltaic System 370 x 300 x 41.6 (mm)

model

WVC-1200/1400/1600/2000/2400/2800

Recommend use panels

4*750Watt

Output voltage mode

120/230V Auto switch

PV Open circuit voltage

33-60VDC

Operating voltage range

22-60V

Starting voltage range

22-60V

short-circuit current

4*28A

Maximum working current

4*23A

Output parameters

@120V

@230V

Output peak power

2600Watt

2600Watt

Rated output power

2400Watt

2400Watt

Output current

20A

10.5A

AC voltage range

85-160VAC

180-265VAC

AC frequency range

48-51Hz/58-61Hz

48-51Hz/58-61Hz

Power factor

>95%

>95%

Number of branch connections.

2PCS(Single)

4PCS(Single)

Output efficiency

@120V

@230V

Static MPPT efficiency

99.5%

99.5%

Max output efficiency

95%

95%

Loss of power at night

<0.5W

<0.5W

Total current harmonics

<5%

<5%

Appearance and technical features

Temperature range

-20°C to +50°C

Size(L×W×H)

370mm×300mm×41.6mm

Net amount

3.18kg

Waterproof grade

Ip65 NEMA3R

Heat dissipation mode

Self-cooling

Communication mode

Wi-Fi

Power transmission mode

Reverse transmission,Load priority

monitoring system

APP

Electromagnetic Detection

EN61000-6-1:2007 EN6100-6-3:2007+A1:2011+AC:2012

Power Grid standard

EN50549-1,EN 50549-2,NBR 16149:2013,UL1741

Power grid detection

IEC/EN 62109-1, IEC/EN 62109-2, IEC 62116,IEEE 1547

Certificate

CE,CEC
